## **Quick Answer**

**DFU (Device Firmware Update) Mode** is a low-level recovery state built into every iPhone. It allows a computer to communicate directly with the device's chip, completely bypassing iOS to reinstall firmware from scratch.

Entering DFU Mode requires a strict button sequence — the exact combination and timing depend on your iPhone model. Once in DFU Mode, the screen stays completely black. This is normal and doesn't mean your device is damaged or powered off.

Simply entering DFU Mode does not erase your data. Data loss depends on which tool you use next: through **Finder, iTunes, or Apple Devices**, only **Restore** is available in DFU Mode — meaning all data will be erased. **Third-party repair tools vary**: some offer both data-preserving and data-erasing options, depending on the tool and the severity of the issue.

Below, we'll walk you through how to exit DFU Mode safely, how it works, when to use it, and common problems people meet.

## What Is DFU Mode?

**DFU** stands for **Device Firmware Update**, the deepest, lowest-level restore mode built into all iPhones, iPads, and iPod touch devices running iOS/iPadOS. Unlike regular Recovery Mode that loads a lightweight boot program, DFU Mode fully bypasses the iOS operating system and the iBoot bootloader, letting your computer communicate directly with the device's permanent SecureROM chip embedded in hardware.

When an iPhone enters DFU Mode, its screen stays entirely black with no Apple logo, charging icon, or USB prompt displayed—this blank screen is the clearest visual marker distinguishing it from Recovery Mode. Reserved as the final troubleshooting resort for severe iOS failures, DFU Mode is used to reinstall full device firmware via IPSW files, fix bricked devices, persistent boot loops, corrupted system files, and errors that standard recovery cannot resolve. Bear in mind that restoring via DFU will erase all local data on your iPhone permanently due to Apple's end-to-end data encryption protection mechanism.

## DFU Mode vs Recovery Mode: What's the Difference?

DFU Mode and Recovery Mode are often confused because both require connecting an iPhone to a computer and are used when the device cannot start normally. However, they work at different levels of the iPhone's boot process.

The easiest way to understand the difference:

**Recovery Mode is a standard recovery environment.****DFU Mode is a deeper firmware-level recovery state.**

In Recovery Mode, the iPhone loads a limited recovery environment that allows Finder, Apple Devices, or iTunes to communicate with the device and perform system operations. In DFU Mode, the device skips the normal recovery interface and communicates at a lower firmware level.

**Recovery Mode****DFU Mode**
Operating level Higher-level recovery environment Lower-level firmware state
Loads iOS No No
Loads iBoot Yes No
Screen display Connect to computer icon appears Completely black screen
Difficulty Easier to enter Requires precise button timing
Main purpose Repair common iOS problems Perform deeper firmware restoration
Typical use case First recovery attempt Advanced troubleshooting, especially when Recovery Mode fails
Update vs Restore option Both available; Update is attempted first in most cases Both available; Restore is more often required due to the severity of issues that require DFU
Data loss Depends: Update usually preserves data; Restore erases everything**⚠️****Through Finder/iTunes/Apple Devices, only Restore is available — data must be erased.**

**⚠️****Third-party tools vary: some offer both data-preserving and data-erasing repair options.**
Compatible with third-party repair tools Yes Yes
Accidental trigger risk Higher — can occur unintentionally (e.g., after a failed update)Very low — precise button sequence makes accidental entry unlikely

For a detailed comparison, refer to our guide covering [DFU Mode vs. Recovery Mode](https://www.gbyte.com/blog/dfu-mode-vs-recovery-mode). If you’d like to dive deeper into Recovery Mode — its mechanics, plus how to enter and exit the mode — read our comprehensive guide to [iPhone Recovery Mode](https://www.gbyte.com/blog/iphone-recovery-mode-guide).

## How Does DFU Mode Work?

To understand DFU Mode, it helps to know what normally happens when your iPhone starts up.

Every time you power on an iPhone, it goes through a specific boot sequence called the **boot chain**:

1.   **Boot ROM** — a small piece of code permanently built into the chip, unable to be modified or updated

2.   **LLB (Low-Level Bootloader)** — loads and verifies the next stage

3.   **iBoot** — a secondary bootloader that prepares the device to load iOS

4.   **iOS (the operating system itself)**

Under normal conditions, each stage checks the next one before handing off control — this is Apple's way of ensuring nothing tampered or corrupted gets loaded.

**DFU Mode works by skipping this entire chain.** Instead of the device booting itself, DFU Mode puts the chip into a state where it does _nothing_ — it doesn't load the Boot ROM's usual startup routine, doesn't load LLB, iBoot, or iOS. It simply sits there, silent and receptive, waiting for a connected computer to send it firmware directly.

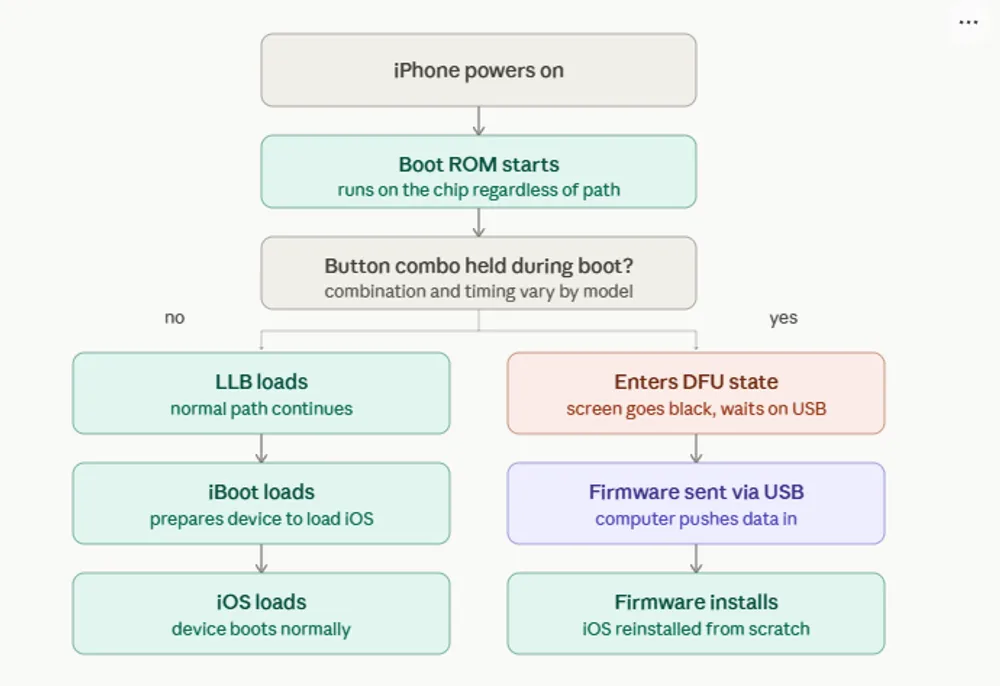

![Image 1: Boot chain flowchart showing normal iOS boot vs DFU mode entry.webp](https://resource.gbyte.com/20260803/large/Boot%20chain%20flowchart%20showing%20normal%20iOS%20boot%20vs%20DFU%20mode%20entry.webp)

This is why the screen stays completely black in DFU Mode — there's no LLB, no iBoot, no iOS running, so there's nothing to display. The device isn't "frozen" or broken; it's intentionally in a **dormant, pre-boot state**.

Because DFU Mode bypasses even iBoot (which Recovery Mode still relies on), it gives a connected computer the deepest possible level of access to the device's firmware. This is what allows DFU Mode to fix issues that Recovery Mode can't — including firmware corruption that occurs _before_ iBoot itself would normally load.

In short: **Recovery Mode talks to a partially-booted device. DFU Mode talks to a device that hasn't booted at all.**

## When Should You Use DFU Mode?

DFU Mode isn't something you'd use for everyday troubleshooting — it's reserved for situations where more common fixes haven't worked. Here are the main scenarios where it becomes necessary.

### System repair and recovery

This is the most common reason people need DFU Mode:

*   **Your iPhone is stuck in a boot loop**, repeatedly restarting or showing the Apple logo without fully starting up

*   **Recovery Mode fails to fix the issue**, and iTunes/Finder returns an error during a Recovery Mode restore attempt

*   **The device is completely unresponsive** — no display, no reaction to button presses, not recognized normally by a computer

*   **You need to downgrade to an earlier iOS version**, which in some cases requires DFU Mode since Recovery Mode restores are more restrictive

*   **A previous jailbreak or software modification left the device unstable**, requiring a deeper-level restore to fully reverse

In these cases, DFU Mode gives a connected computer the most direct access possible to the device's firmware — which is exactly why it can fix issues that Recovery Mode can't.

### Jailbreaking and advanced customization

DFU Mode is also the entry point for most jailbreak tools, including checkra1n and similar utilities. Because DFU Mode loads the chip's Boot ROM without any of Apple's higher-level security checks in place, it's the only state that gives these tools the low-level access they need to modify the boot process before iOS security protections activate.

### Third-party recovery and unlocking software

Beyond Apple's own tools, DFU Mode is also used by many third-party iOS repair and data recovery applications — including tools designed to remove screen time passcodes, resolve MDM (Mobile Device Management) restrictions, or fix devices that are locked out due to forgotten passcodes on hardware the user owns. These tools rely on the same low-level access DFU Mode provides, applying it toward more specialized outcomes than a standard Apple firmware restore.

## Which iPhones Support DFU Mode?

DFU Mode is a hardware-level feature built into every iPhone's chip, not something added or removed by software updates. Because of this, **every iPhone model — from the very first generation to the latest — supports DFU Mode**. There's no such thing as an iPhone that "doesn't support" it.

What does change from model to model is the **button combination and timing** needed to enter it, since Apple altered the physical button layout over the years (removing the Home button, changing how force-restart works, and so on). We'll walk through the exact steps for each model group in the following section.

**💡 What you need on your computer**

While every iPhone can enter DFU Mode, your computer needs the right software to detect it and communicate with it:

**Computer****Software needed**
Mac running macOS Catalina (10.15) or later Finder
Mac running macOS Mojave (10.14) or earlier iTunes
Windows 10 or 11 iTunes, or the Apple Devices app
Windows (older versions)iTunes

A quick way to check: if you can't remember your macOS version, click the Apple menu in the top-left corner and select **About This Mac**. On Windows, make sure whichever app you're using — iTunes or Apple Devices — is updated to its latest version before starting, since an outdated version is one of the most common reasons a computer fails to detect a device in DFU Mode.

**One exception worth noting:** iPhone 7 and iPhone 7 Plus specifically require **iTunes**, even on a Mac running Catalina or later — Finder doesn't reliably detect these two models in DFU Mode. If you're working with either of these, install iTunes even if you'd normally use Finder for everything else.

## Requirements Before Entering DFU Mode

Before you start, take a few minutes to prepare. Skipping these steps is one of the most common reasons DFU Mode attempts fail partway through or end up causing more problems than they solve.

1.   **Back up your iPhone first**

This is the most important step. **If your DFU Mode session ends up requiring a Restore, everything on your device will be erased** — photos, messages, app data, everything. Back up using:

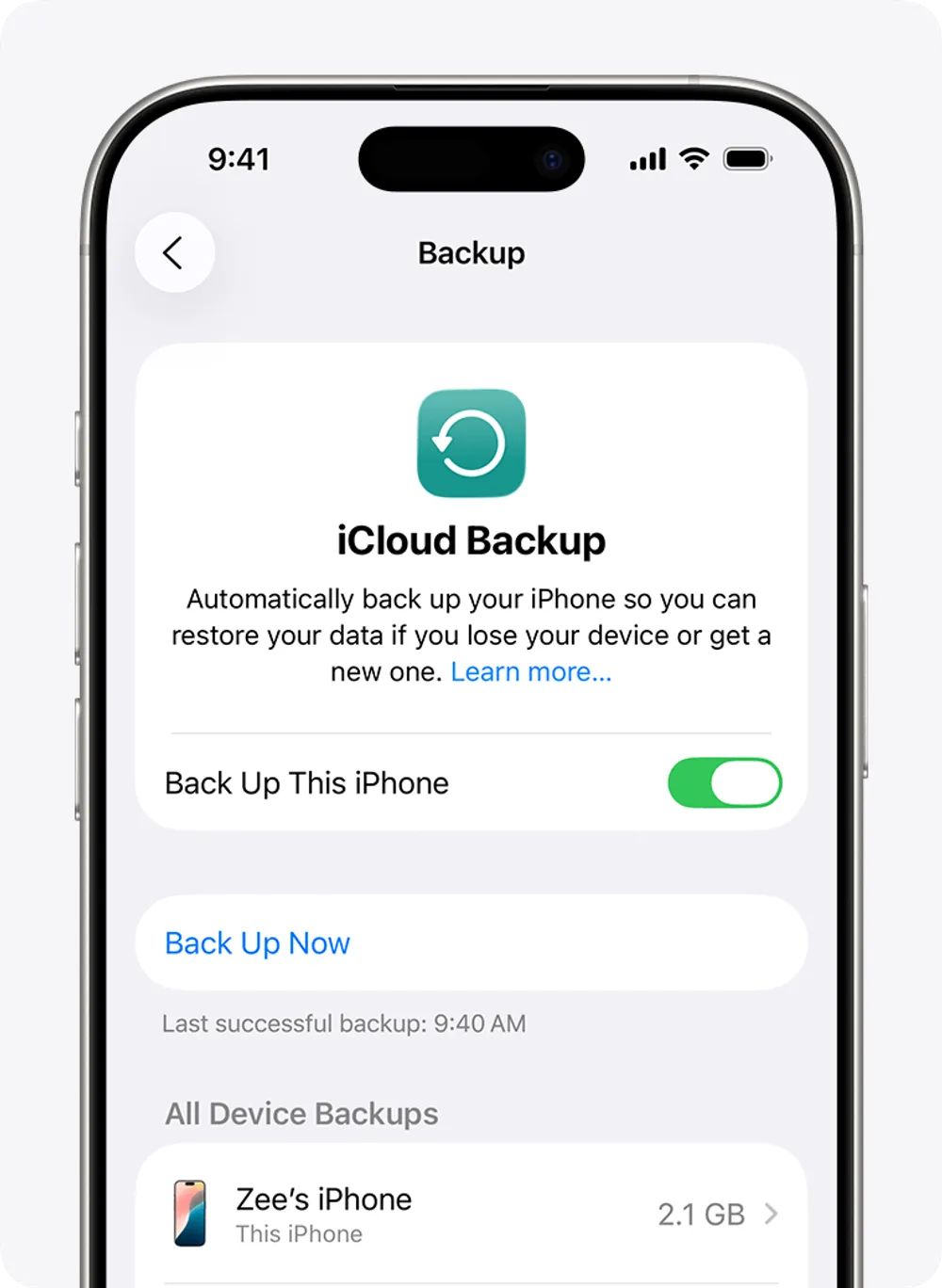

*   **iCloud**: Settings → [your name] → iCloud → iCloud Backup → Back Up Now

![Image 2: iCloud back up now.webp](https://resource.gbyte.com/20260803/large/iCloud%20back%20up%20now.webp)

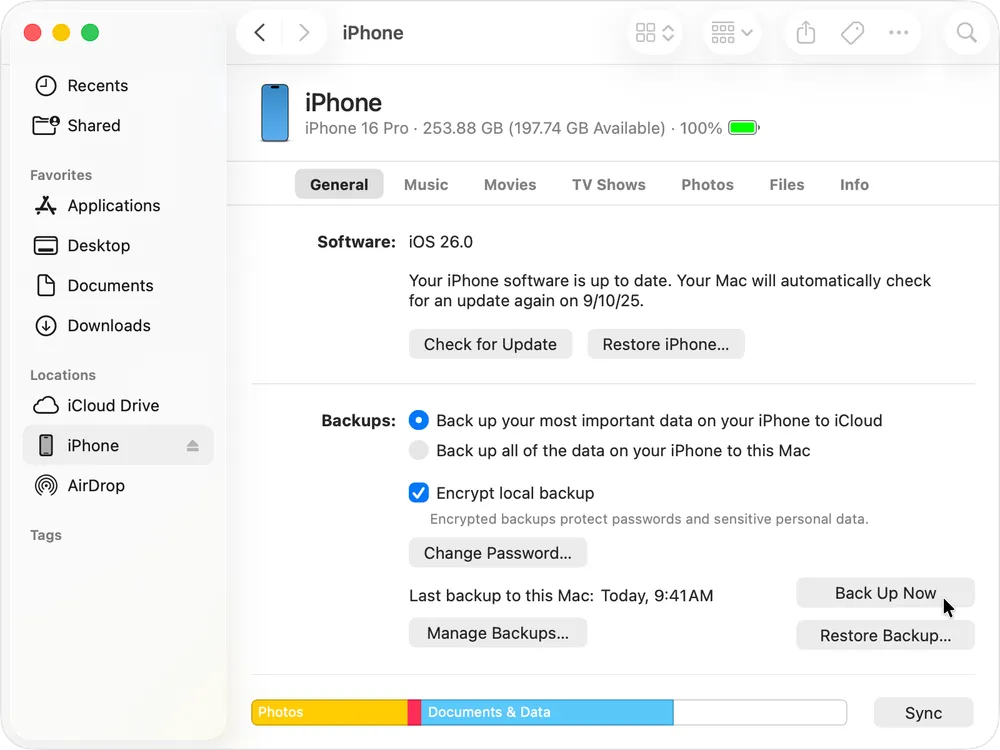

*   **Finder or iTunes**: Connect your iPhone, select it in Finder/iTunes, and click "Back Up Now"

![Image 3: Finder-iTunes-back-up-now.webp](https://resource.gbyte.com/20260803/large/Finder-iTunes-back-up-now.webp)

Do this even if you're only planning to enter DFU Mode briefly to troubleshoot — it's much better to have a backup you don't end up needing than to skip it and lose data.

1.   **Charge your iPhone to at least 50%**

DFU Mode and firmware restores can take several minutes to complete. If your iPhone dies mid-process, it can leave the device in a broken, half-updated state that's much harder to recover from. Plug your iPhone into power (or make sure it's well above 50%) before you begin.

1.   **Use a reliable, original cable**

DFU Mode requires a stable USB connection throughout the entire process. Damaged, off-brand, or MFi-uncertified cables are a common cause of the computer losing connection to the device mid-restore. Use the cable that came with your iPhone, or a certified replacement, if possible.

1.   **Turn off Find My iPhone (if you plan to restore)**

If there's a chance you'll perform a full Restore, go to Settings → [your name] → Find My → Find My iPhone and turn it off beforehand. If this isn't disabled first, Activation Lock can prevent the device from being set up again after a restore — even though it's your own device.

1.   **Make sure your computer software is up to date**

Whether you're using Finder, iTunes, or the Apple Devices app, confirm it's running the latest version. An outdated version is a frequent cause of the computer failing to recognize an iPhone in DFU Mode, even when the button sequence was done correctly.

1.   **Free up space on your computer**

If a firmware restore is likely, make sure your computer has a few gigabytes of free storage — the process needs to download the relevant firmware file before it can proceed.

## How to Put Your iPhone Into DFU Mode (and How to Exit It)

Find your model group below — each one covers both entering and exiting DFU Mode.

**💡 One thing to know before you start:** the exit steps below are for backing out of DFU Mode _before_ starting a repair — for example, if you entered it by accident, or changed your mind partway through. Once you actually begin a firmware Update or Restore through your computer, you don't need to exit manually at all — the device will restart on its own and boot normally as soon as the installation finishes.

### iPhone 8 and later (including all Face ID models and iPhone SE 2nd/3rd gen)

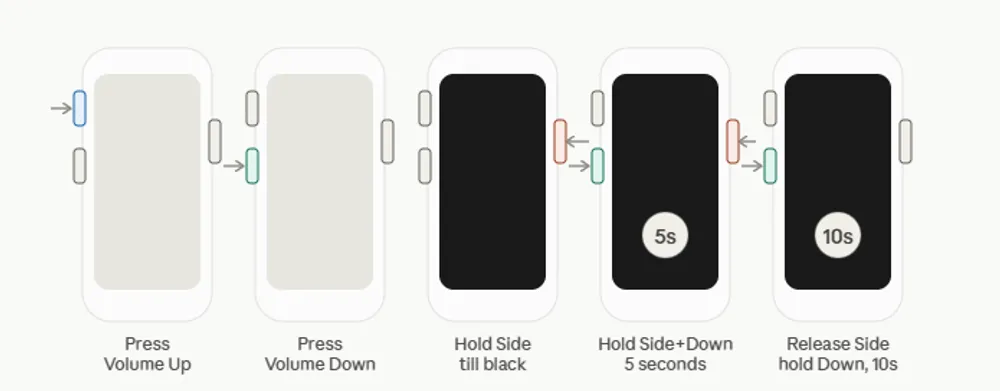

**To enter DFU Mode:**

1.   Connect your iPhone to your computer with a cable, and open Finder, iTunes, or Apple Devices.

2.   Press and quickly release the **Volume Up** button.

3.   Press and quickly release the **Volume Down** button.

4.   Press and hold the **Side** button until the screen goes completely black.

5.   As soon as the screen goes black, without releasing the Side button, also press and hold **Volume Down** — hold both for 5 seconds.

6.   Release the **Side** button, but keep holding **Volume Down** for another 5 seconds.

7.   Release **Volume Down**. If the screen stays black and your computer shows a message that a device has been detected in recovery mode, you've successfully entered DFU Mode.

_If your device shows a screen telling you to connect the device to iTunes, retry these steps._

![Image 4: iPhone 8 and later enter dfu mode.webp](https://resource.gbyte.com/20260803/large/iPhone%208%20and%20later%20enter%20dfu%20mode.webp)

**To exit DFU Mode without restoring:**

Press and quickly release **Volume Up**, then press and quickly release **Volume Down**, then press and hold the **Side** button until the Apple logo appears.

### **iPhone 7 and iPhone 7 Plus**

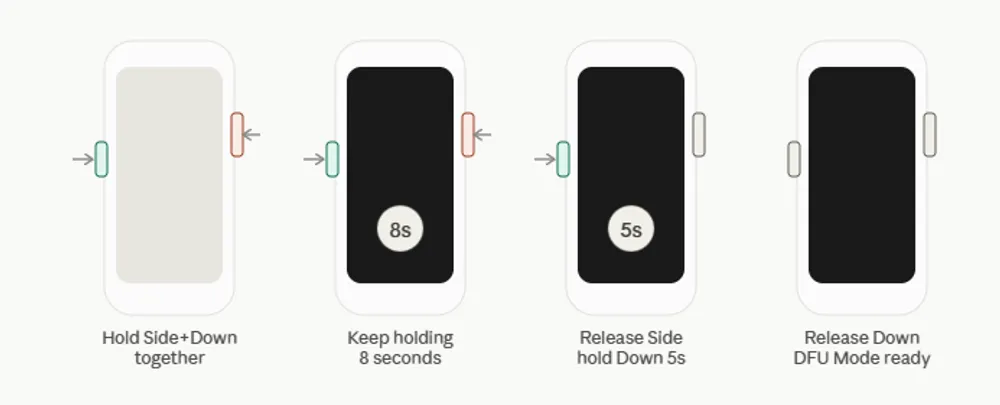

**To enter DFU Mode:**

*   Connect your iPhone to your computer, and open iTunes (Finder isn't reliable for this model in DFU Mode).

*   Press and hold both the **Side** button and the **Volume Down** button together for 8 seconds.

*   After 8 seconds, release only the **Side** button, and continue holding **Volume Down** for another 5 seconds.

*   Release **Volume Down**. A black screen with no Apple logo means you're in DFU Mode.

![Image 5: iPhone 7 and iPhone 7 Plus enter dfu mode.webp](https://resource.gbyte.com/20260803/large/iPhone%207%20and%20iPhone%207%20Plus%20enter%20dfu%20mode.webp)

**To exit DFU Mode without restoring:**

Hold the **Side** button and **Volume Down** button together until the Apple logo appears.

### **iPhone 6s and earlier (Home button models)**

**To enter DFU Mode:**

*   Connect your iPhone to your computer, and open iTunes.

*   Press and hold both the **Home** button and the **Side/Top** button together for 8 seconds.

*   After 8 seconds, release only the **Side/Top** button, and continue holding **Home** for another 5 seconds.

*   Release the **Home** button. A black screen means you're in DFU Mode.

![Image 6: iPhone 6s and earlier enter dfu mode.webp](https://resource.gbyte.com/20260803/large/iPhone%206s%20and%20earlier%20enter%20dfu%20mode.webp)

**To exit DFU Mode without restoring:**

Hold the **Home** button and the **Side/Top** button together until the Apple logo appears.

#### 🔴 **How to tell if you did it right**

Regardless of model, the result should always be the **same completely black screen** — no Apple logo, no "connect to computer" icon. If you see:

*   **The Apple logo** — you held a button too long. Start over.

*   **A "connect to iTunes/Finder" screen with a cable icon** — you entered Recovery Mode instead. Start over and pay closer attention to timing.

It often takes **2–3 attempts**to get the timing right, especially the first time. This is normal — DFU Mode's timing window is intentionally narrow.

## Common Problems May Occur When Using DFU Mode

Although DFU Mode provides the deepest level of iPhone software restoration, the process may still fail in certain situations. These failures do not always mean that the iPhone has a hardware problem. Many DFU-related issues are caused by incorrect button combinations, connection problems, firmware errors, or computer-related issues.

Understanding these common problems can help determine whether the issue can be fixed through software troubleshooting or requires further hardware inspection.

### iPhone Cannot Enter DFU Mode

One of the most common problems is that the iPhone fails to enter DFU Mode correctly. Unlike Recovery Mode, DFU Mode requires precise timing when pressing and releasing the buttons. If the timing is incorrect, the iPhone may restart normally, enter Recovery Mode instead, show the Apple logo, or display the recovery screen.

**Common causes include:**

*   Incorrect button sequence

*   Releasing buttons too early or too late

*   Using instructions for the wrong iPhone model

*   Damaged or unresponsive buttons

**What to try:**

*   Confirm your iPhone model and follow the correct DFU steps

*   Repeat the process carefully with accurate timing

*   Try another USB cable or computer if the device is not recognized

### Computer Does Not Detect iPhone in DFU Mode

When an iPhone successfully enters DFU Mode, the screen remains completely black. This can make users think the process failed, even though the device may already be in DFU Mode.

The computer should detect the iPhone through: Finder on newer macOS versions and Apple Devices app or iTunes on Windows.

If the computer cannot recognize the device, **possible causes include**:

*   Faulty USB cable

*   Damaged USB port

*   Outdated Apple device software or drivers

*   Connection issues between the iPhone and computer

**What to try:**

*   Use an Apple-certified USB cable

*   Connect directly to a USB port instead of using adapters or USB hubs

*   Update Finder, Apple Devices app, or iTunes

*   Restart both the computer and iPhone

### DFU Restore Fails or Shows Errors

A DFU restore reinstalls the iPhone firmware from scratch. During this process, failures may occur because of firmware, connection, or computer-related issues.

**Common causes include:**

*   Interrupted firmware download

*   Corrupted firmware package

*   Unstable internet connection

*   Apple server communication issues

*   USB connection problems

**Users may encounter errors such as:**

*   [Error 4013](https://www.gbyte.com/blog/iphone-error-4013-fix)

*   Error 9

*   Error 14

*   Error 4005

**Before assuming hardware failure, try:**

*   Downloading the firmware again

*   Updating Finder, Apple Devices app, or iTunes

*   Using another computer or network connection

*   Replacing the USB cable

If DFU restoration repeatedly fails after these troubleshooting steps, the issue may be related to deeper hardware problems, such as:

*   NAND storage failure

*   Logic board damage

*   Baseband-related issues

*   Physical damage affecting internal components

In such cases, professional hardware diagnosis may be required.

### iPhone Still Has Problems After DFU Restore

A successful DFU restore can resolve many iOS-related issues, but it cannot fix every problem. If the iPhone continues to experience problems after a clean firmware installation, the cause may not be related to iOS system corruption.

**Example scenario:**

An iPhone 14 becomes stuck on the Apple logo after a failed software update. After entering DFU Mode and reinstalling iOS, the device starts normally again. This suggests the issue was caused by software corruption.

However, if the same issue continues even after a successful DFU restore, possible causes may include:

*   Hardware instability

*   Storage component issues

*   Logic board-related problems

*   Physical damage

At this stage, additional software restoration methods are unlikely to resolve the problem, and professional repair may be needed.

## A More User-Friendly Approach: iOS System Repair Tools

DFU Mode provides a powerful way to restore iPhone firmware, but completing a manual DFU recovery process can be challenging for users without technical experience.

To perform a DFU restore, users need to find the correct instructions for their iPhone model, follow precise button combinations with accurate timing, and confirm whether the device has successfully entered DFU Mode. Since the iPhone screen remains completely black in DFU Mode, it can be difficult to know whether the process was completed correctly.

There's also the data question. Through Apple's own tools — Finder, iTunes, or Apple Devices — a DFU-triggered repair only offers Restore, which erases everything on the device. Third-party iOS repair tools handle this differently depending on the tool: some are limited to the same erase-everything outcome, while others are built to offer more flexibility around what happens to existing data during a repair.

iOS system repair tools provide a more guided recovery workflow by offering:

*   Visual instructions or animation guides for entering Recovery Mode or DFU Mode

*   Clear explanations of repair options and potential data loss risks

*   A simplified interface to guide users through the recovery process

These tools do not completely replace DFU Mode. For deeper system recovery, many iOS repair tools still rely on DFU Mode to communicate with the device.

For example, [**Gbyte Repair**](https://www.gbyte.com/ios-system-repair) helps simplify the DFU-related recovery workflow by providing illustrated instructions and animation guides. During the DFU entry process, the tool displays countdown guidance so users know when to press or release buttons without manually tracking timing.

Beyond guiding users through DFU-related steps, **Gbyte** also provides system repair solutions for common iOS issues, such as iPhone stuck on the Apple logo, boot loops, failed updates, and other system-related problems. It can also help restore disabled iPhones caused by forgotten passcodes, with the understanding that passcode-related recovery may require erasing the device.

Before any repair begins, **Gbyte** explains what the selected repair option means for your data, so you know the outcome before committing to it — rather than discovering it only after the process is underway.

This makes Gbyte a more guided option for users who need iPhone system recovery but are unfamiliar with Apple's manual DFU Mode restoration process.

## FAQs

Q1. How do I put my iPhone in DFU Mode?
Follow the correct button combination for your iPhone model. The steps vary depending on whether your iPhone has Face ID, a Home button, or other button layouts. See the detailed instructions above for your device.

Q2. What is DFU Mode used for?
DFU Mode is used to restore iPhone firmware at a deeper level than Recovery Mode. It is commonly used when standard recovery methods fail or when a complete firmware reinstall is required.

Q3. Is DFU Mode risky?
DFU Mode itself is safe, but restoring an iPhone through DFU Mode may erase all data on the device. Always back up your iPhone whenever possible before performing a restore.

Q4. What problems can DFU Mode fix?
DFU Mode can help resolve severe iOS software issues, such as failed updates, boot loops, devices stuck on the Apple logo, or situations where Recovery Mode cannot complete a restore.

Q5. Is DFU Mode better than Recovery Mode?
Not always. DFU Mode performs a deeper firmware-level restore, but it is usually recommended only when Recovery Mode cannot resolve the problem.

Q6. Can DFU Mode remove Activation Lock?
No. DFU Mode cannot bypass Activation Lock or remove the Apple ID linked to the device.

Q7. Can DFU Mode fix an iPhone without losing data?
Entering DFU Mode does not delete your data. But the repair itself is where data loss happens: through Finder, iTunes, or Apple Devices, DFU-triggered repairs only offer Restore, which erases everything. Third-party repair tools vary — some are limited to the same erase-everything outcome, while others offer more flexibility around preserving existing data.

Q8. Does my iPhone exit DFU Mode automatically after a restore?
Yes. After the firmware restore completes, the iPhone restarts automatically and exits DFU Mode. Manual exit steps are only needed if you want to leave DFU Mode before starting the restore process.
